"T" Adapters With Pressure Gauge
Continuous Pressure Monitoring for Accumulators and Dampers

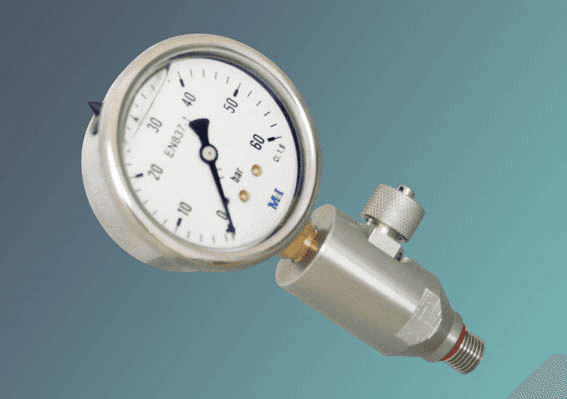

"T" adapters with pressure gauge for the monitoring of the pressure of our apparatus. "T" adapters made of stainless steel, with stainless steel pressure gauge casing; or made in PVC with either stainless steel or plastic pressure gauge casing.
Applications
Essential pressure monitoring accessories for HIDRACAR accumulators and pulsation dampers.
Pressure Monitoring
System Diagnostics
Preventive Maintenance
Process Control
Features and Benefits
Professional pressure monitoring solutions engineered for reliable continuous operation.
Multiple Material Options
Available in stainless steel (600 bar) or PVC (10-20 bar) construction for various applications.
Wide Pressure Range Selection
Pressure gauges from 6 to 600 bar for stainless steel, 6-16 bar for plastic adapters.
Standard 1/4" BSP Valve
Compatible with standard gas charging accessories and tire inflating kits with adapter.
Dual Gauge Sizes Available
Standard 63mm or optional 100mm diameter dial gauges for better visibility.
Inductive Contact Switch Option
Special models with electrical warning signals for pressure deviation detection.
Technical Specifications
Comprehensive specifications for all T-adapter configurations and pressure monitoring applications.
| Parameter | Value | Unit | Range/Notes |
|---|---|---|---|
| Design Pressure - Stainless Steel | 600 | bar | BT#A-AI models |
| Design Pressure - PVC | 10 (up to 20) | bar | BT#A-PC/AI and BT#A-PC/PL models |
| Pressure Gauge Ranges - Stainless Steel | 6, 10, 16, 25, 40, 60, 100, 160, 250, 300, 400, 600 | bar | Multiple options available |
| Pressure Gauge Ranges - Plastic | 6, 10, 16 | bar | For plastic adapters |
| Valve Type | 1/4" BSP | - | Stainless steel standard |
| Dial Gauge Diameter | 63 mm (standard), 100 mm (optional) | - | Available sizes |
| Gauge Connection | Brass (standard), Stainless Steel (optional) | - | Material options |
Monitor Your System Pressure
Contact our specialists to select the appropriate T-adapter model and pressure gauge range for your accumulator or pulsation damper application.
